The Longer3D longerWare3 setup files for Windows 64bit can be found here:

http://www.longer3d.com/desktop-3d-printers/orange-10-lcd-3d-printer.html

If you are using a Windows 7 machine, and experiencing LongerWare crashing after initial install ran. You will have to right click the Longer Ware icon after install to tell windows to:

  1. Click Advanced button in shortcut properties, and check "Run as Administrator". LongerWare program crashes on some machines unless this is done.
  2. Click Compatibility tab, Run in "Windows 7" mode and check "Run this program as an Administrator
  3. Run the LongerWare slicer using this specific shortcut

To install on Ubuntu Linux under wine 4.2 involves a bit of effort, but does work on a 64bit Ubuntu OS like Xenial, Cosmic, or Bionic.  playonlinux is a configuration wizard to help track the versions of wine known to work with specific Windows programs.

Ubuntu 18.10 Cosmic:

  1. wget -q "http://deb.playonlinux.com/public.gpg" -O- | sudo apt-key add -
  2. sudo wget http://deb.playonlinux.com/playonlinux_cosmic.list -O /etc/apt/sources.list.d/playonlinux.list
  3. sudo apt-get update
  4. sudo apt-get install playonlinux

Ubuntu 18.04 Bionic:

  1. wget -q "http://deb.playonlinux.com/public.gpg" -O- | sudo apt-key add -
  2. sudo wget http://deb.playonlinux.com/playonlinux_bionic.list -O /etc/apt/sources.list.d/playonlinux.list
  3. sudo apt-get update
  4. sudo apt-get install playonlinux

Ubuntu 16.04 Xenial:

  1. wget -q "http://deb.playonlinux.com/public.gpg" -O- | sudo apt-key add -
  2. sudo wget http://deb.playonlinux.com/playonlinux_xenial.list -O /etc/apt/sources.list.d/playonlinux.list
  3. sudo apt-get update
  4. sudo apt-get install playonlinux

Run Playonlinux program, and follow the screen caps to setup your slicer:

Manually create new wine drive.

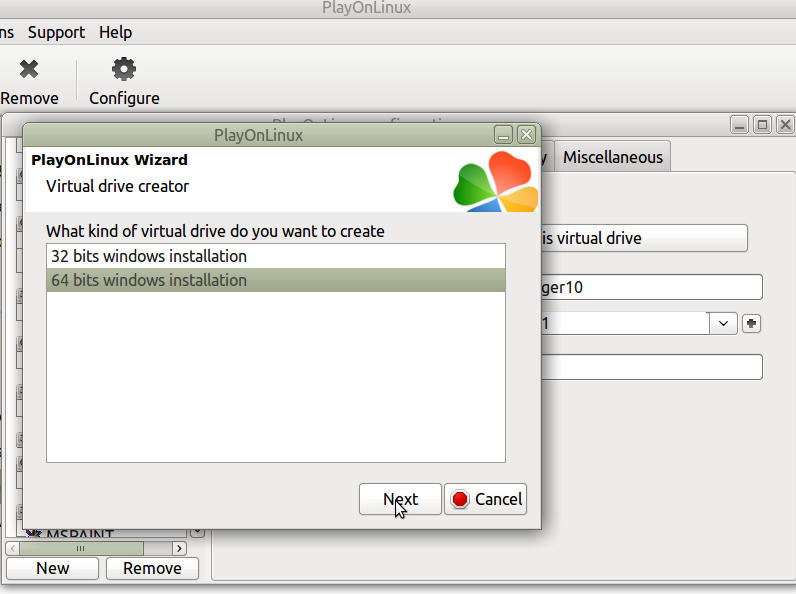

Use 64bit systems

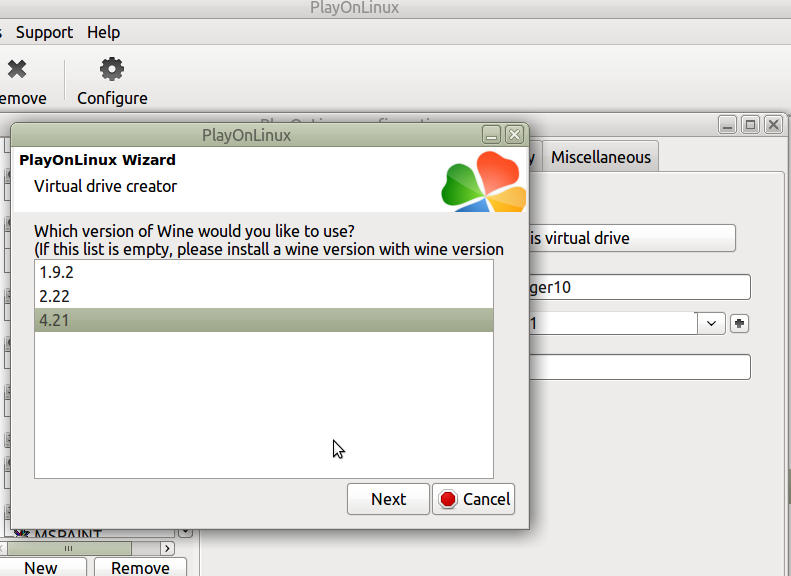

Use default wine version (updated next)

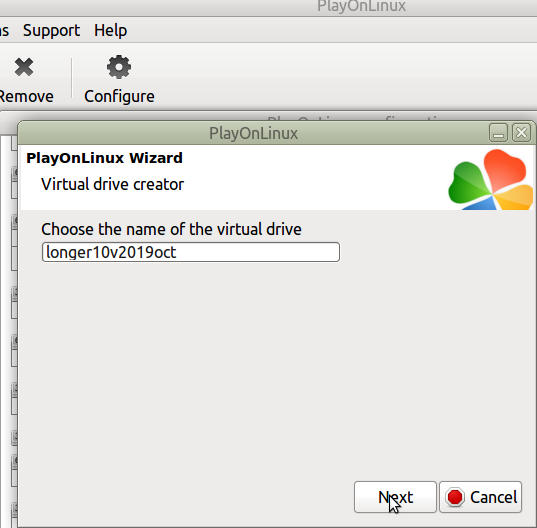

name drive

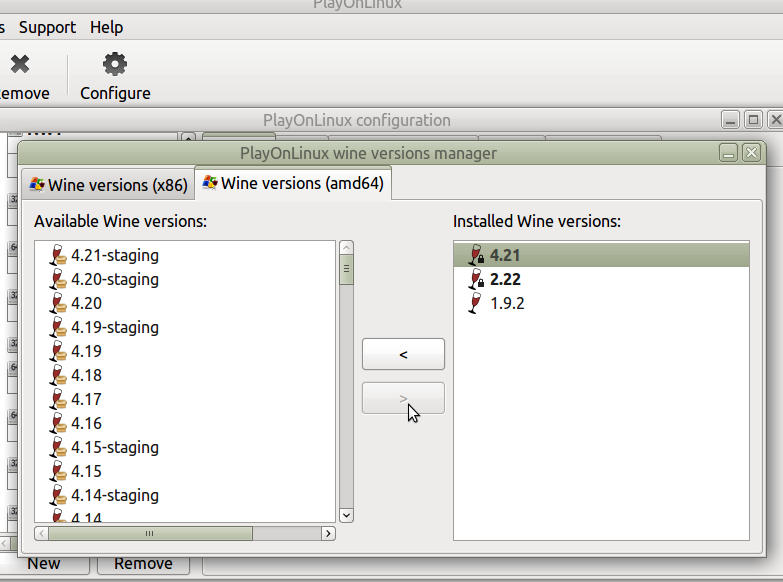

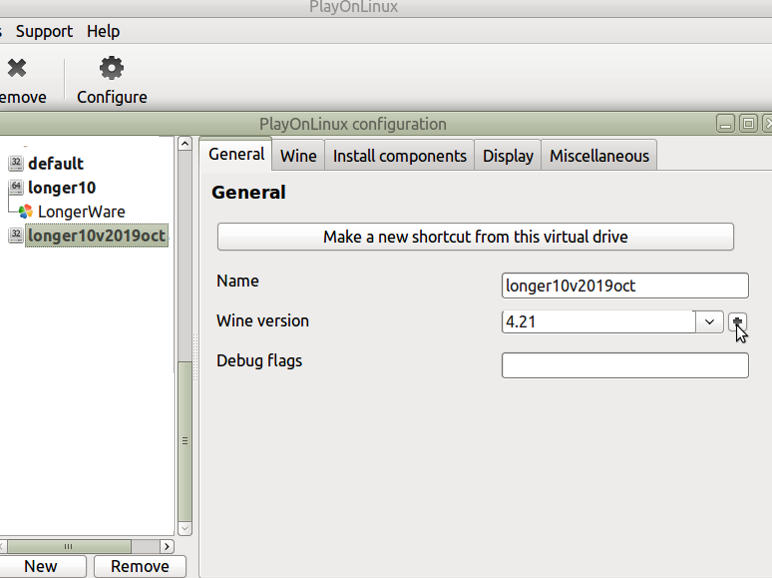

add new wine engine

select v4.2 on 64bit tab

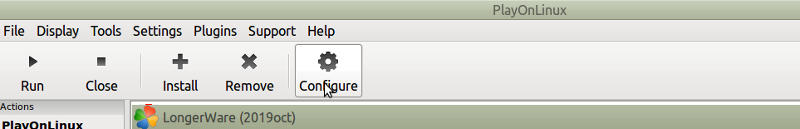

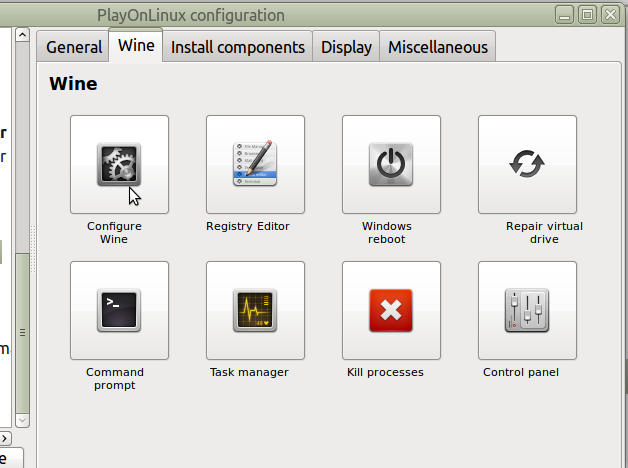

use setting tabs to setup wine

ID as Windows 7 to programs

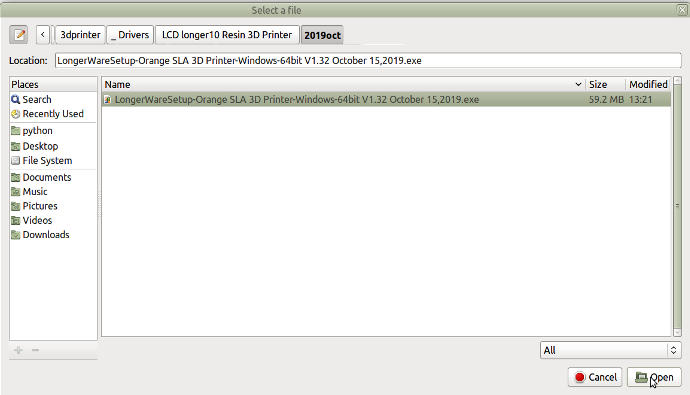

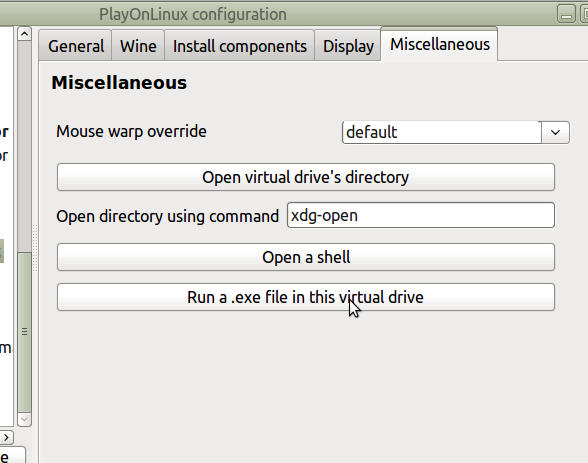

Open LongerWare 64bit installer.exe file

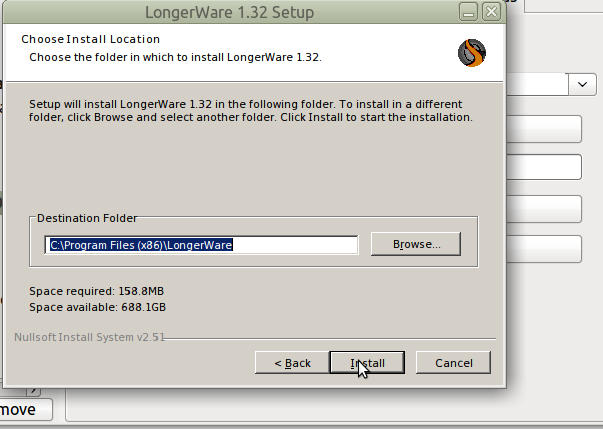

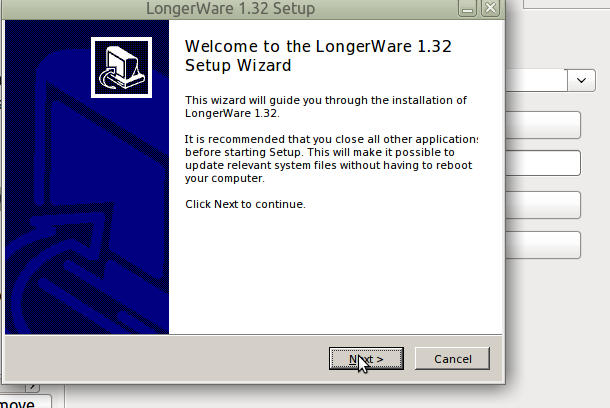

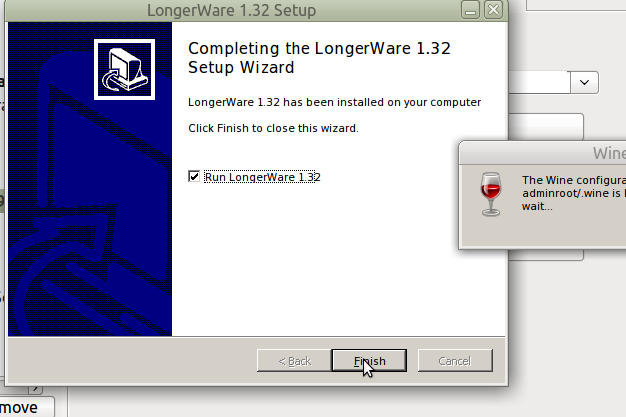

Run install

Window may get hidden, so move as needed

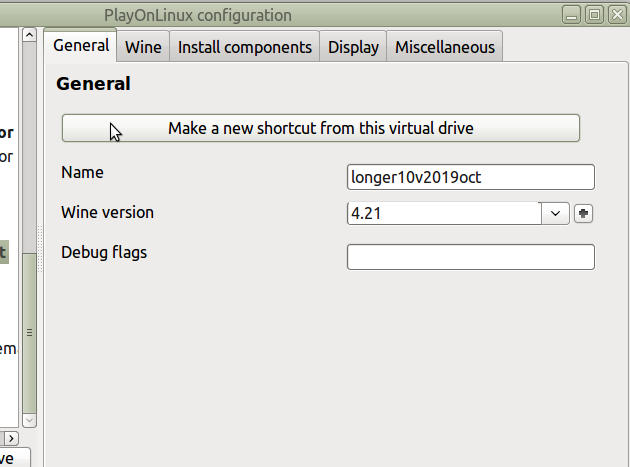

Add launcher Shortcut

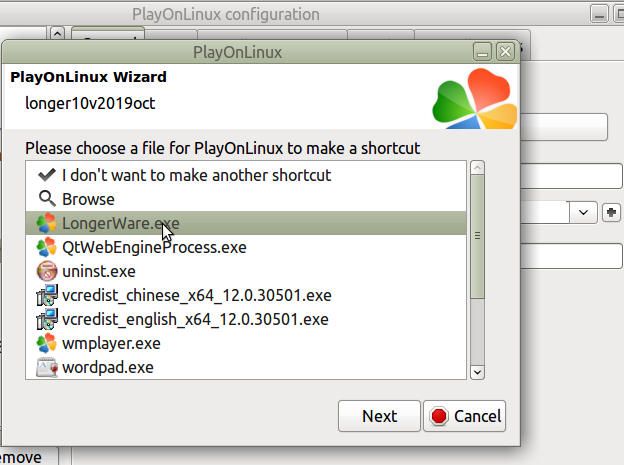

Choose LongerWare.exe Program

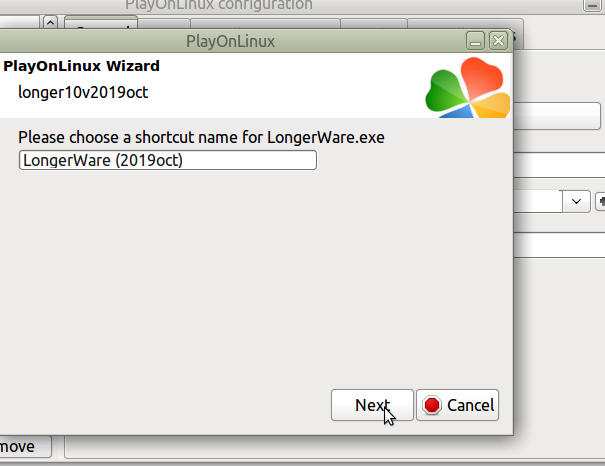

Give it a name

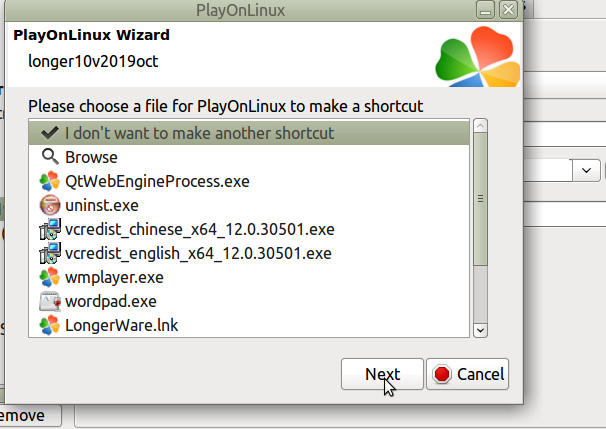

Exit wizard

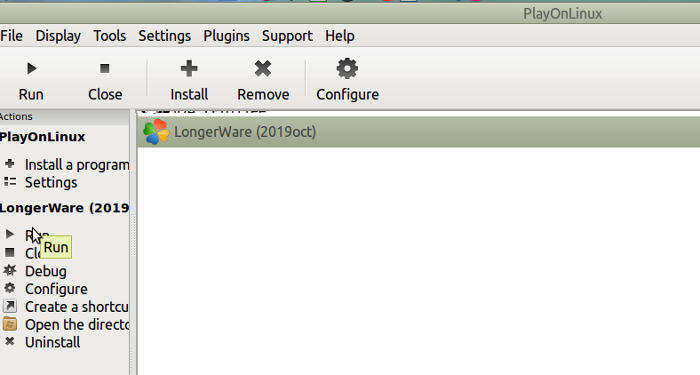

Run launcher

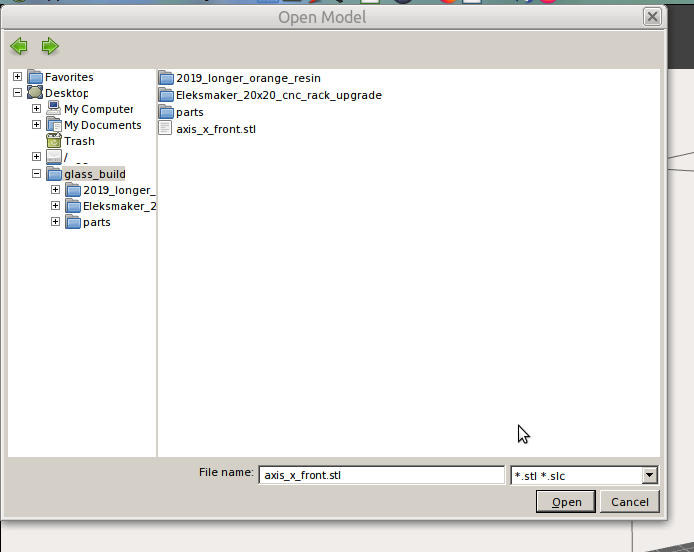

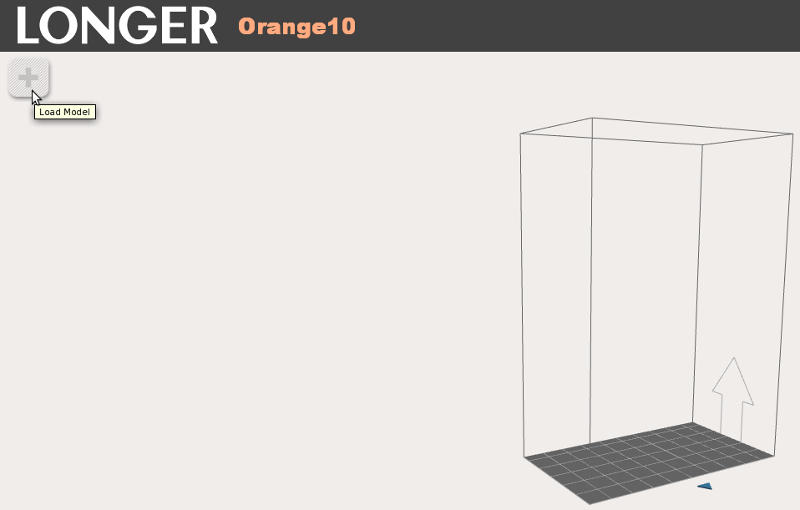

Open file

Select STL (limit 1 object per STL file)

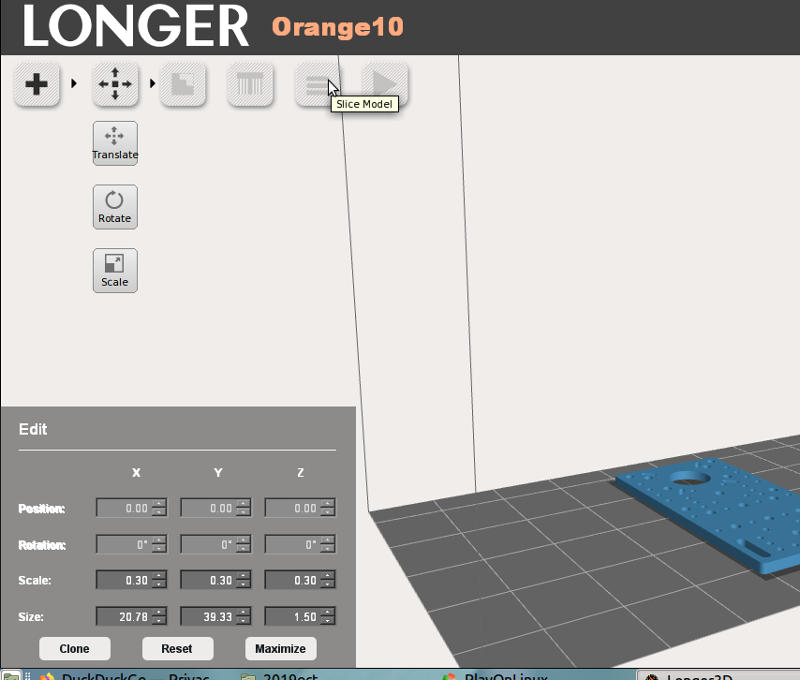

Edit size/supports etc.

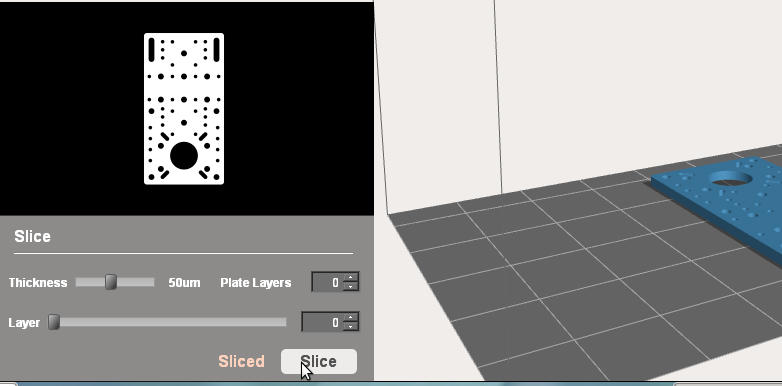

Click gray-slicer icon (it will work)

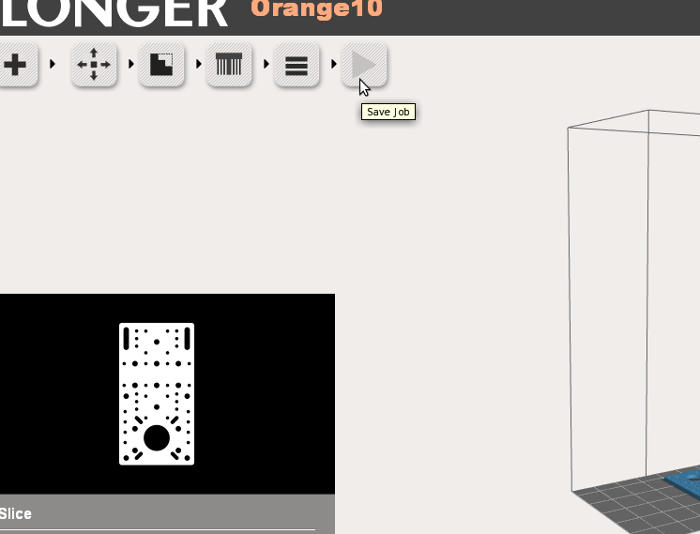

Click Gray Save icon (it will work)

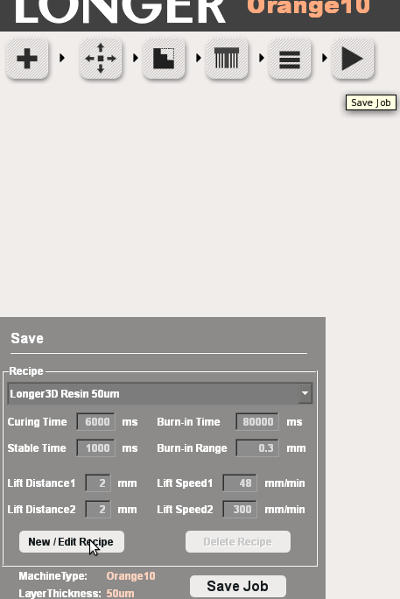

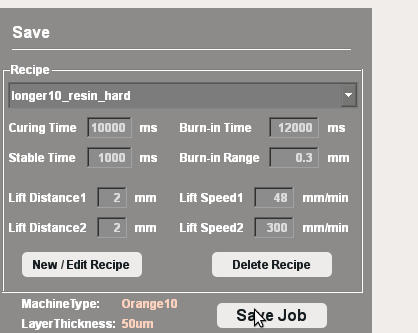

Add new slicer setting

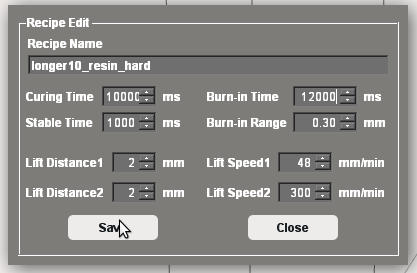

Note the UV exposure times are now set to better match MOST resins (one may have to copy-and-paste numeric values into this box in wine)

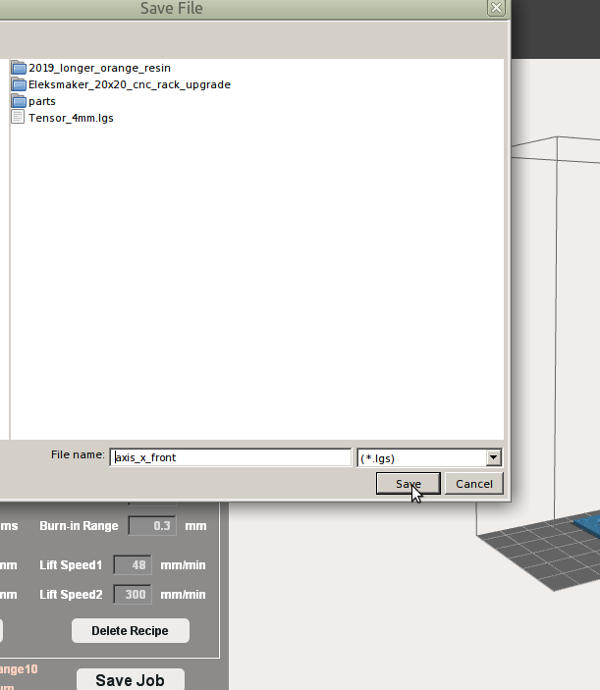

Save your IGS file for the Orange10

Name your job without spaces in name, and 8 characters if possible.

Copy new .igs file into root path of fat32 micro-sdcard.

Eject card,

Insert card into orange10 while Power is OFF
